Nr110 Portable Digital Photo Colorimeter 4mm Small Aperture For Color Difference

Shenzhen ThreeNH Technology Co., Ltd.

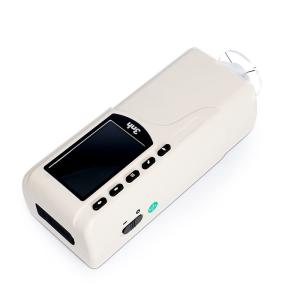

Nr110 Portable Digital Photo Colorimeter 4mm Small Aperture For Color Difference

  • 1
  • 2
  • 3

Brand Name : 3nh

Model Number : NR110

Certification : CE, TUV, FCC, ISO9001, RohS

Place of Origin : Shenzhen, China

MOQ : 1 Unit

Price : Discuss

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000 Units per Month

Delivery Time : 1-3 work days

Packaging Details : 46*25*38cm, 4.5kg, Alluminum Box

Measuring Aperture : Φ4mm

Repeatability : within ΔE*ab 0.08

Illuminating/Viewing Geometry : 8° / d

Measuring Range : L: 0 to 100

Illuminant Device : LED blue light excitation

Storage : 100 pcs standard samples; 20000 pcs test samples

Color Difference Formula : ΔE*ab; ΔL*ab; ΔE*C*H

Measuring Conditions : CIE 10° Standard Observer

Contact Now

cheap colorimeter nr110 portable handheld colorimetros with 4mm small aperture for color difference

NR110 colorimeter features its built-in white calibration parameter, no need calibrate every time starting up, and also a simple interface which makes it's very easy to operate. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld colorimeter.

NR110 colorimeter also features its two locating methods: illumination locating and cross locating, which can solve the problem of measuring small spots very well.

Repetitive error is less than 0.08ΔE*ab, inter-instrument error is less than 0.8ΔE*ab, which make its stability and reliability of measurement relatively superior.

NR110 colorimeter is standardly configured with 1 measuring aperture, 1 light source mode, multiple color space systems, multiple chromaticity indexes conforming to different standards, all of which make NR110 can at a certain degree fulfill different kinds of requirements for color measurements in different industries.

NR110 colorimeter also goes with a powerful PC software CQCS3 which includes more extended functions that can enormously facilitate your work.

Nr110 Portable Digital Photo Colorimeter 4mm Small Aperture For Color Difference

Illuminating Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face. (for NR110 Precise Colorimeter )

Feature

> Switchable 8mm and 4mm measuring apertures

> Higher measurement stability and accuracy

> Double locating: illuminating and cross locating

> Configured with rechargeable Liion battery

> New integrating sphere optical path design
Specification
Model
NR110 Colorimeter
Display Mode
CIE L*a*b; CIE XYZ;CIE*C*H
Color Difference Formula
ΔE*ab; ΔL*ab; ΔE*C*H
Illuminating/viewing geometry
8/d (8°illumination angle/diffuse viewing)
Light Source
LED blue light excitation
Detector
Silicon photoelectric diode
Measuring Aperture
Φ4mm
Measuring Conditions
Observer: CIE 10° Standard Observer
Measuring Range
L: 0 to 100
Repeatability
Standard deviation within ΔE*ab 0.08
Storage
100 pcs standard samples; 20000 pcs test samples
Battery Life
More than 3000 measurements
Interface
Model B: USB RS-232: Baud rate 19200bps
Lamp Life
more than 1.6 million times in 5 years
Certificates
CE & RoHS & TUV & ISO9001

Applications:

3nh colorimeter spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories. It not only can help to perform color matching and color management studies, but also can control product quality management. 3nh colorimeter is equipped with high-end color management software that can connect to PC to achieve more extension functions.
Nr110 Portable Digital Photo Colorimeter 4mm Small Aperture For Color Difference Nr110 Portable Digital Photo Colorimeter 4mm Small Aperture For Color Difference Nr110 Portable Digital Photo Colorimeter 4mm Small Aperture For Color Difference
Textile Garment Fabric PVC Film Leather
Nr110 Portable Digital Photo Colorimeter 4mm Small Aperture For Color Difference Nr110 Portable Digital Photo Colorimeter 4mm Small Aperture For Color Difference Nr110 Portable Digital Photo Colorimeter 4mm Small Aperture For Color Difference
